9/5/11 - 9/17/11 - Intake - 30 hrs

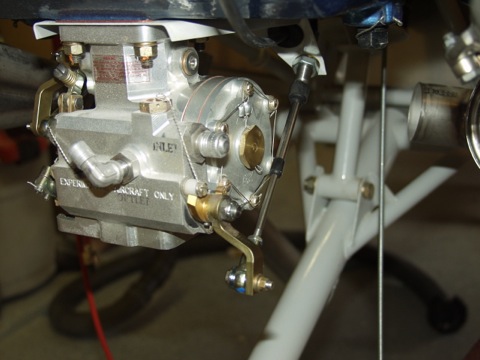

Here is the mixture pushrod as it attaches to the engine.

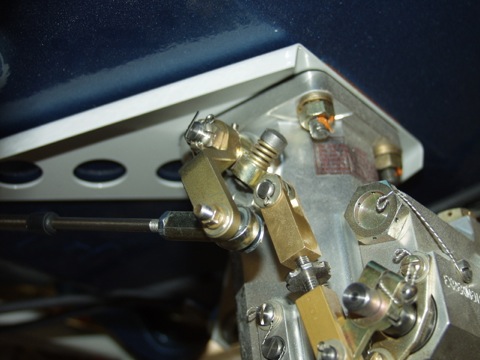

And here is the throttle cable.

I had to order longer cables because of the additional length caused by the Aerosport instrument panel. These had to be special ordered and cost a bundle, but now I don't have to worry about the reach.

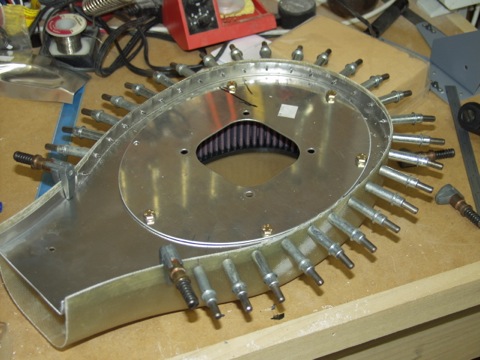

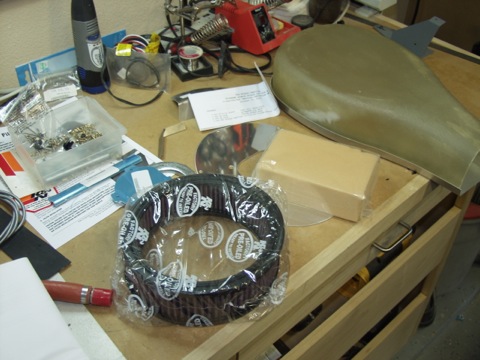

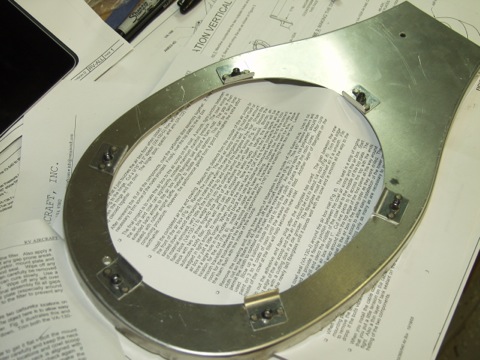

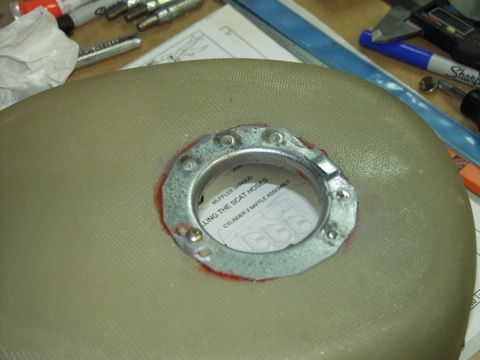

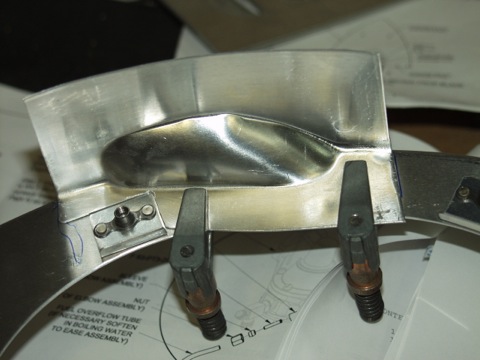

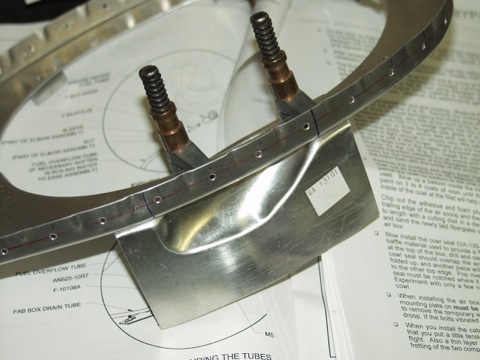

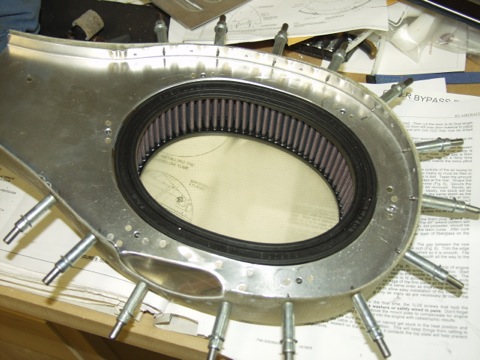

Here are the parts for the filtered air box.
