Previous: Section 30-31



Section 32

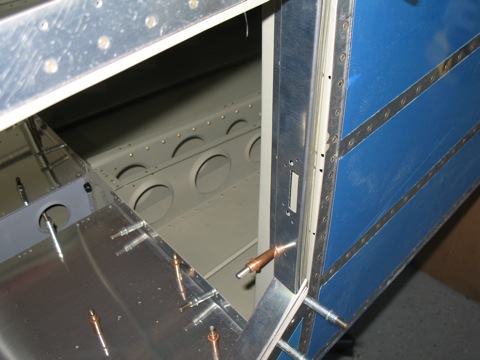

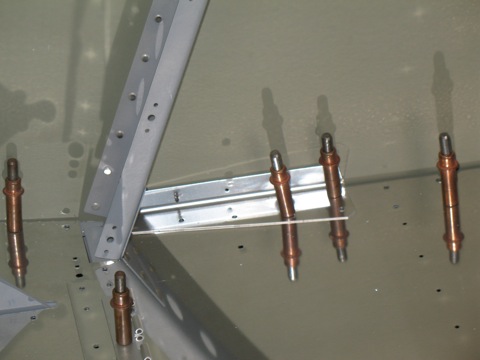

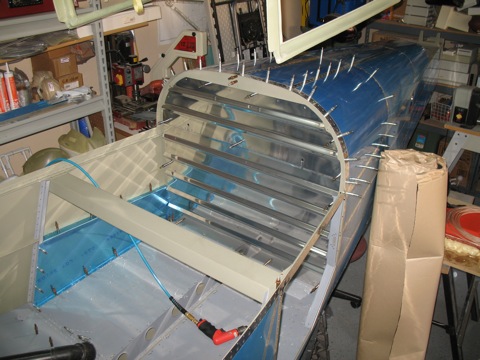

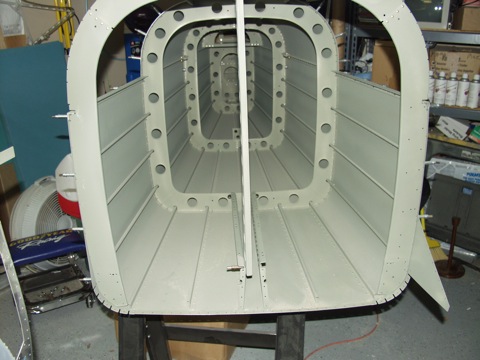

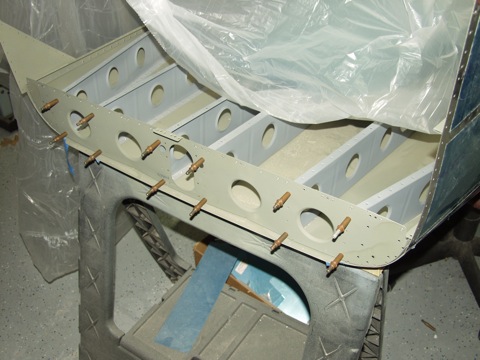

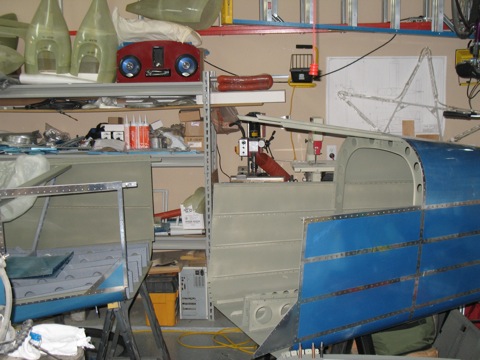

4/15/08 - Tailcone Attachment - 3 hrs









5/1/08 - Tailcone Attachment - 2 hrs





5/2/08 - Tailcone Attachment - 3 hrs







5/3/08 - Tailcone Attachment - 8 hrs

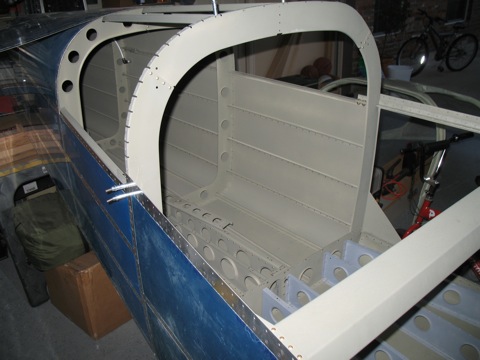

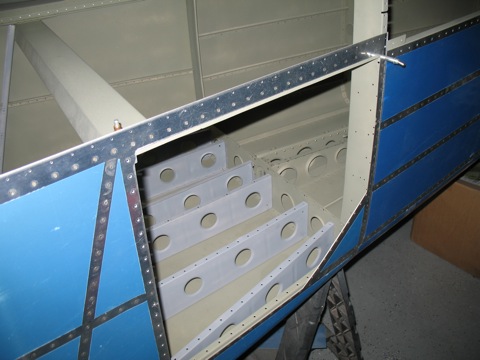

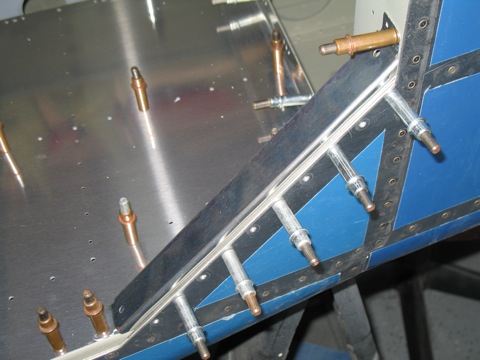

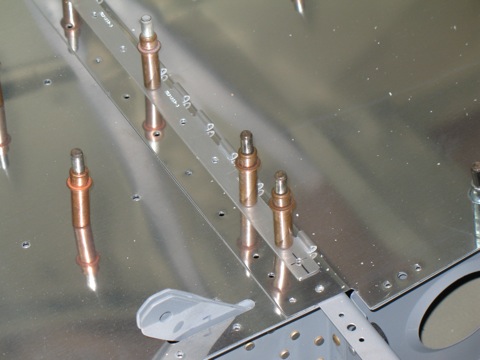

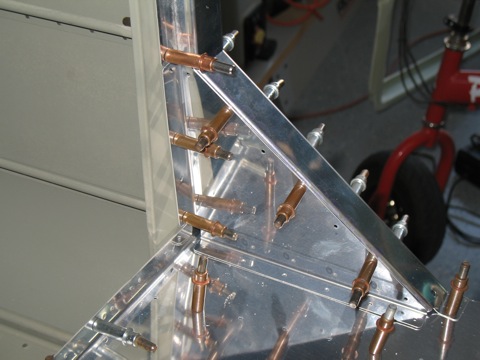

5/4/08 - Baggage Area - 3 hrs









6/8/08 - Baggage Area - 1 hour





6/14/08 - Baggage Area - 7 hour















8/12/08 - Antennas - 4 hrs

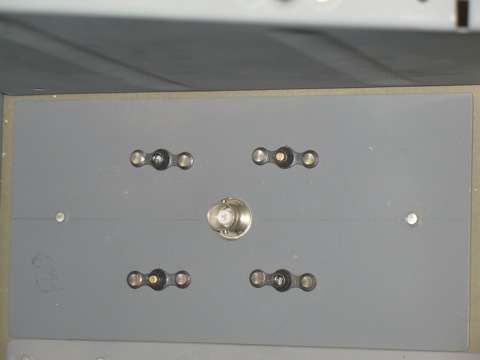

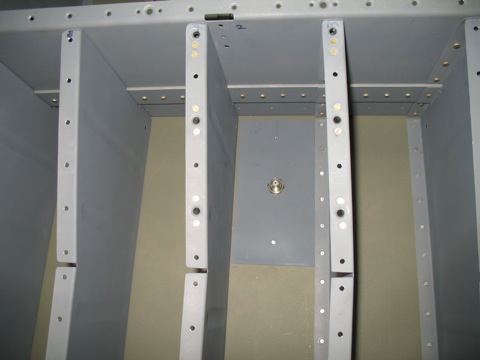

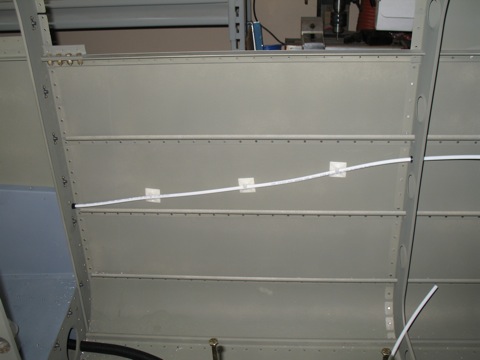

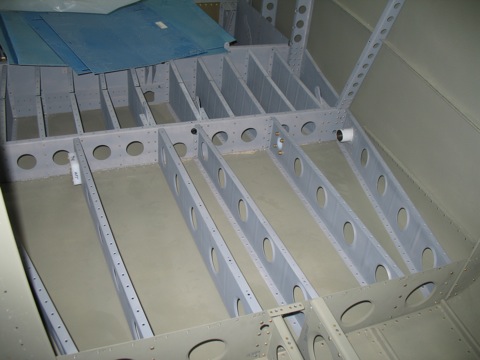

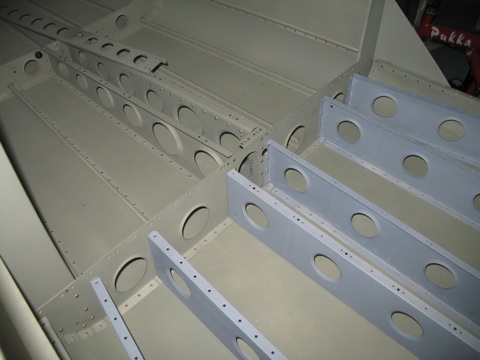

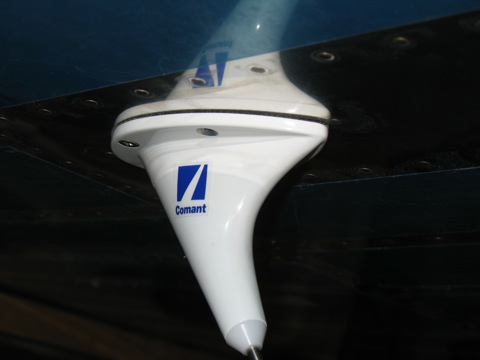

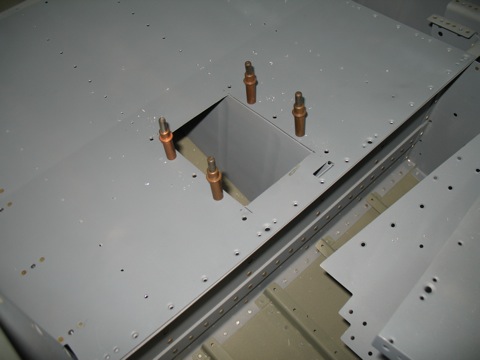

I'm trying to anticipate the things that I might wish I would have done before I secure the rear seat skins in place. I went ahead and ran conduit. I also determined that it would be best to place my primary COM antenna as well as my transponder antenna underneath these rear seats. Since I want to be able to inspect the connections, I decided to add little access hatches as well.

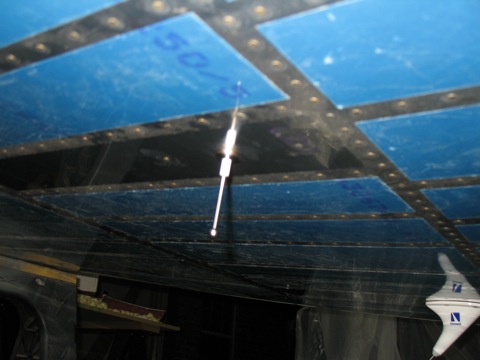

8/16/08 - Antennas, etc - 8 hrs

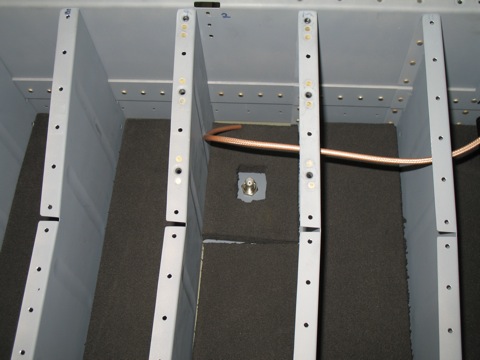

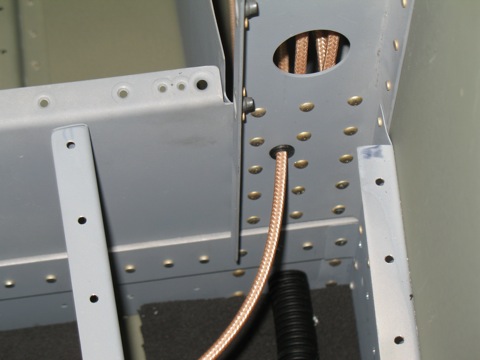

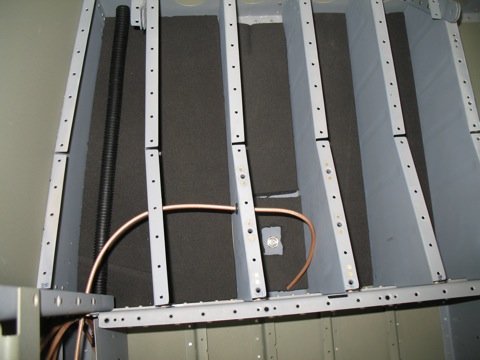

With the antennas in position I was able to finally run the coax and place the insulation under the rear seats.

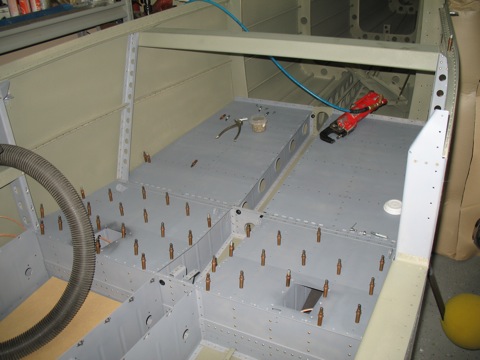

Here's a hint: don't forget to install the steps before you rivet the baggage skins in place. I got about half way done before I realized that I had removed the steps to avoid kicking into them. So I had to drill out about 50 pop rivets.

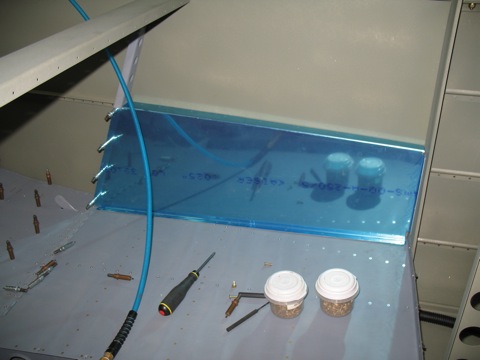

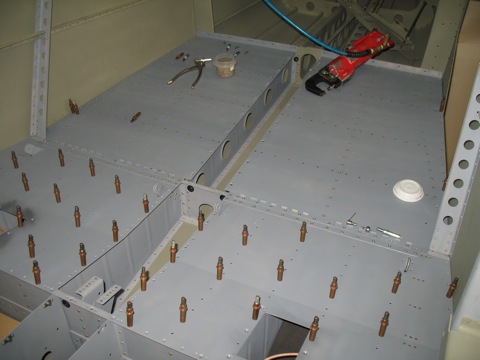

8/20/2008 - Baggage Area (cont) - 3 hrs

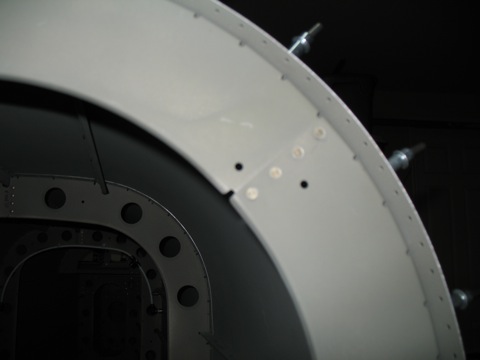

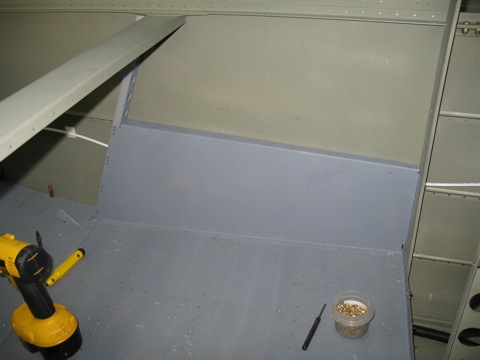

8/21/08 - Baggage Bulkhead - 1 hr





8/23/08 - Dimpling - 1 hour

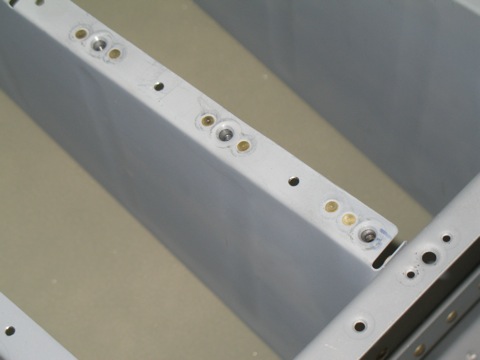

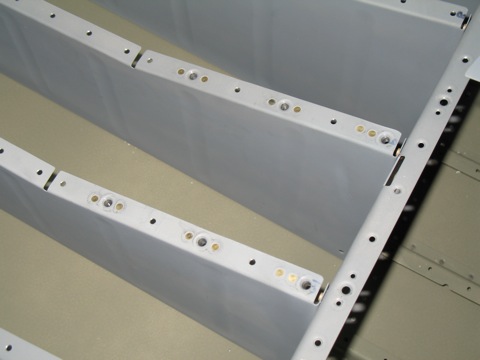

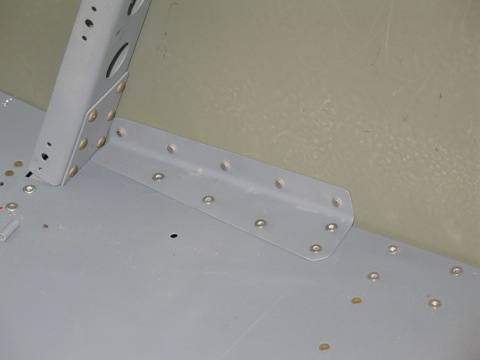

8/24/08 - Nutplates, etc. - 2 hr






Next: Section 34-35
