8/11/2015 - Painted!

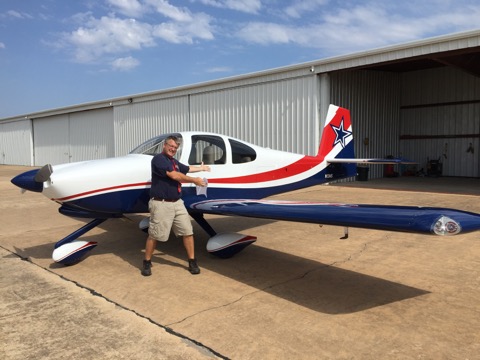

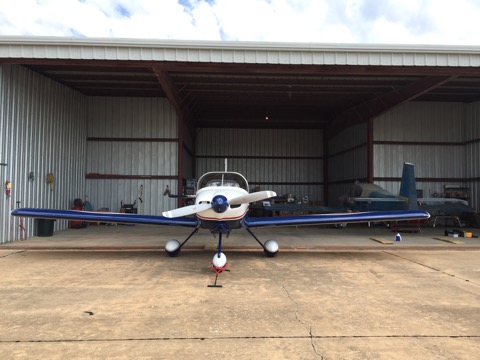

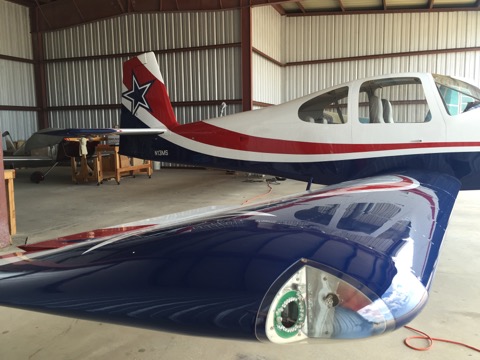

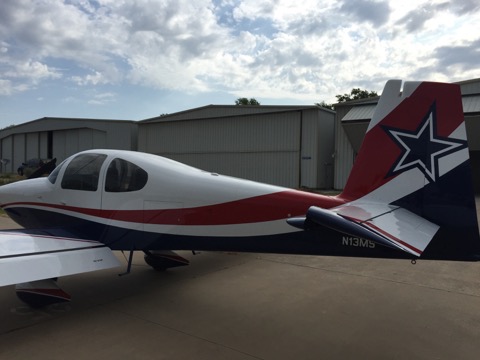

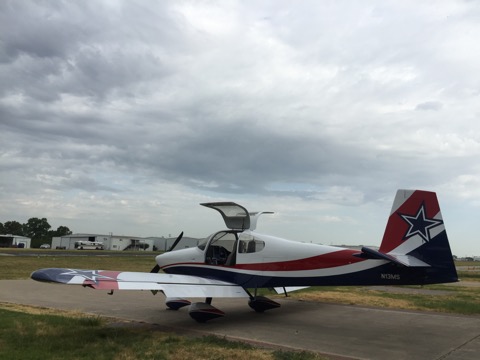

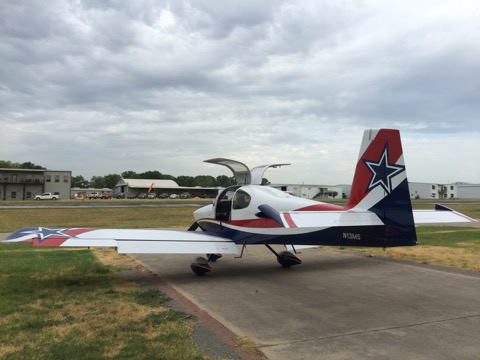

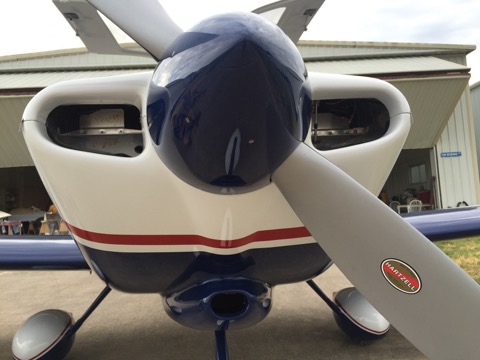

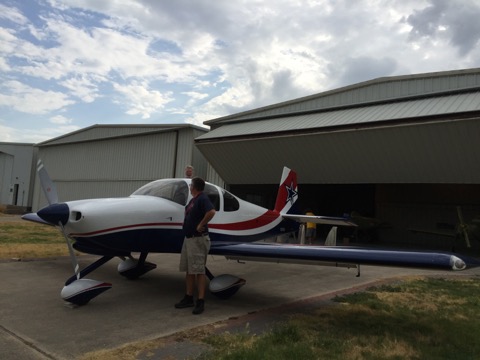

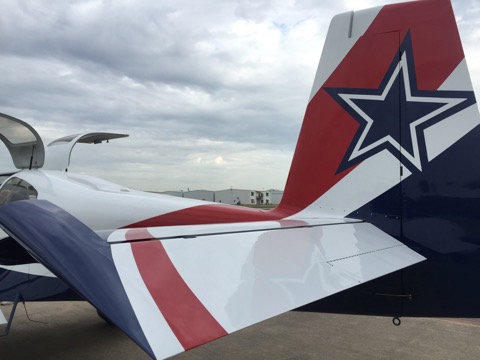

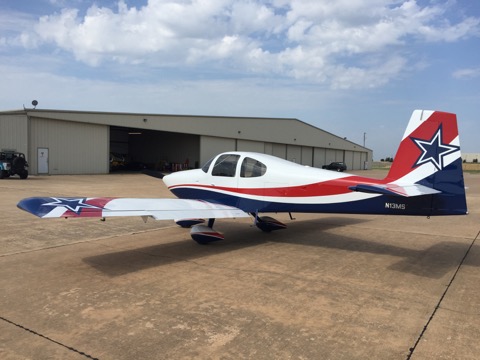

Here are some pictures from last week when I picked up the plane from GLO Custom in Roanoke, TX.

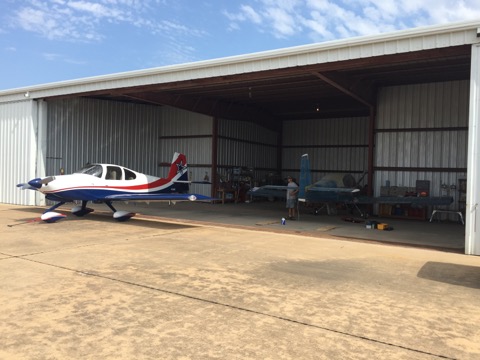

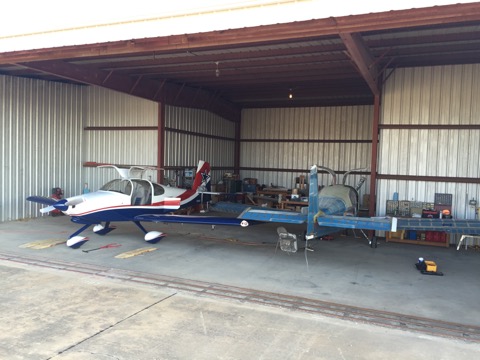

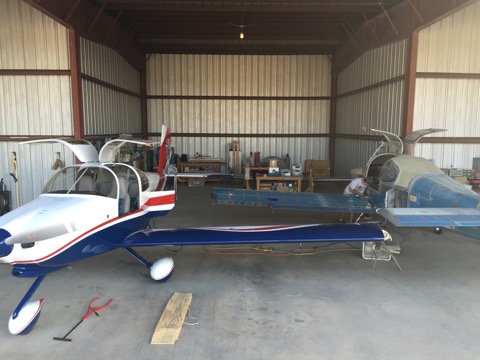

Fitting two RV-10s into a 60 foot T-hangar is a bit tricky.
